PWM-CD Series Basic 12/24V 10A-30A

10A PWM solar charge controller for 12V and 24V battery and solar panel system
The Carspa CD12/24-10 is a 10A PWM solar charge controller that integrates efficient PWM charging to increase battery life and improve solar system performance. Users can choose 12V or 24V solar panel to charge the battery. Designed with a simple interface for ease of use, the controller is with multiple LED indicators to notify users of charge status and battery information. The 10A positive-ground charge controller is capable of charging various 12V and 24V battery types and banks, including Gel battery and lead acid battery.
CD1224-10-10A 12 24V Auto PWM Low Self Consumption Battery Charge Controller

CD12/24-10-10A 12 24V Auto PWM Low Self Consumption Battery Charge Controller

Product Features: 3 LED indications: charge status, SOC, LVD, overload/short circuit; Maximum 16 sq.mm co...

CD1224-10-10A 12 24V Auto PWM Low Self Consumption Battery Charge Controller
CD1224-10-10A 12 24V Auto PWM Low Self Consumption Battery Charge Controller
CD1224-10-10A 12 24V Auto PWM Low Self Consumption Battery Charge Controller

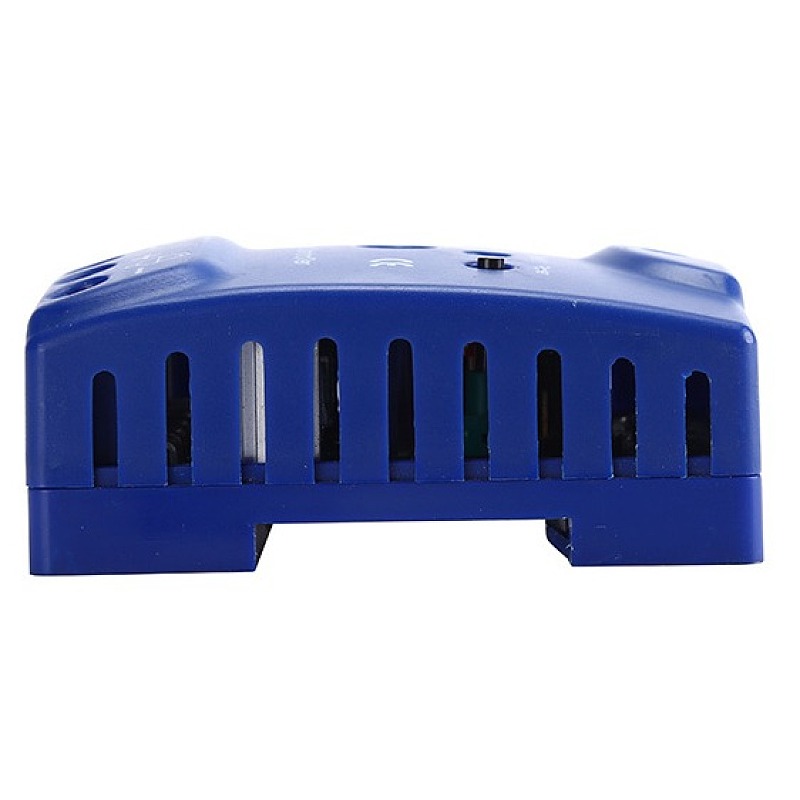

CD12/24-15-15A 12 24V Auto PWM Solar Charge Controller Regulator

CD12/24-15-15A 12 24V Auto PWM Solar Charge Controller Regulator

Product Features: Automatic recognition of input voltage; Applicable to Gel or Liquid batteries; Pulse Mo...

CD12/24-15-15A 12 24V Auto PWM Solar Charge Controller Regulator
CD12/24-15-15A 12 24V Auto PWM Solar Charge Controller Regulator
CD12/24-15-15A 12 24V Auto PWM Solar Charge Controller Regulator
CD1224-20-20A 12 24V Auto PWM Low Self Consumption Battery Charge Controller

CD12/24-20-20A 12 24V Auto PWM Low Self Consumption Battery Charge Controller

Product Features: 3 LED indications: charge status, SOC, LVD, overload/short circuit. Maximum 16 sq.mm co...

CD1224-20-20A 12 24V Auto PWM Low Self Consumption Battery Charge Controller
CD1224-20-20A 12 24V Auto PWM Low Self Consumption Battery Charge Controller
CD1224-20-20A 12 24V Auto PWM Low Self Consumption Battery Charge Controller
CD12/24-30-30A 12/24V Auto Detection Carspa PWM Solar Charge Controller

CD12/24-30-30A 12/24V Auto Detection Carspa PWM Solar Charge Controller

Introduction: Our new charge controller are developed and engineered with the latest technical standards,...

CD12/24-30-30A 12/24V Auto Detection Carspa PWM Solar Charge Controller
CD12/24-30-30A 12/24V Auto Detection Carspa PWM Solar Charge Controller
CD12/24-30-30A 12/24V Auto Detection Carspa PWM Solar Charge Controller

The Carspa CD12/24-10 is a 10A PWM solar charge controller that integrates efficient PWM charging to increase battery life and improve solar system performance. Users can choose 12V or 24V solar panel to charge the battery. Designed with a simple interface for ease of use, the controller is with multiple LED indicators to notify users of charge status and battery information. The 10A positive-ground charge controller is capable of charging various 12V and 24V battery types and banks, including Gel battery and lead acid battery.

Key features:
1.Optimized for a 12V and 24V battery and solar panel system;
2.Capable to charge Gel and lead acid battery, the default battery type is set by factory
3.3 stage PWM charging (equalization, boost and float) and temperature compensation increase battery life and improves system performance.
4.Automatic protection against reverse polarity, short circuit, low voltage, overload
5.Multiple LED indicators show battery capacity, working status and fault status.
6.Easy to mount with screws on mental frameworks
7.Recommend minimum wire size for 10A: 6mm
Specification:
Norminal Voltage: 12V&24V Auto. Detect
Rated charge current: 10A
Self current consumption:<4mA
Max. PV input power: 300W
Operating temperature range: -40~50℃
Temperature compensation:-4mV/cell*K
Dimension: 8.5x7x3.6cm
Weight:120g
IP grade: IP22
Warranty: 2 years
